- Place of Origin: shanghai
- Brand Name: duohe
- Model Number: DHFL

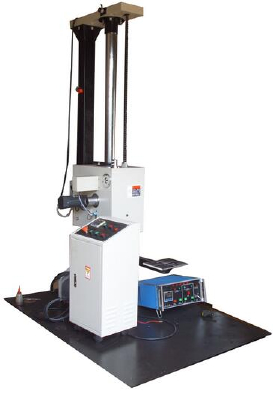

A drop test machine is mainly used to test the product packaging, damaged by fall, evaluate the component in the handling process, from falling its impact strength. Packaging containers of Ling, angle, surface can be tested. So as to improve, perfect packaging design.
The wing drop test machine available, if necessary, welcome to inquire.
Features:
A drop test machine to test the products placed in;
Select a good place to place: the surface, the edge, the angle of the fixed;
The height of the digital display can be set at any height in the test range of the equipment according to the user's request;
After determining a good height, the loss of electromagnetic valve, test pieces of products in the moment to leave the arm free fall.
A drop test machine according to the "stop" button in the automatic reset function drop.
Applicable object:
Electronic product packaging drop;
Plastic product packaging drop;
Toy product packaging drop;
Other finished product packaging drop, etc.
Specifications and technical parameters
Technical parameter
Drop height range
300-1500mm or 2000mm
Height display mode
digital
Drop height error
10mm (adjustable)
Maximum weight of specimen
75kg
Maximum size of specimen
1000X800X1000mm
Impact panel size
1600X1100X14mm
Testing machine dimensions
1650 * 1150 * 2260mm
Control box size
300X350X1100mm
Height adjustment
Motor drive
Drop mode
Face, edge, angle
Total power
3.0KW
Net weight
600kg
Power Supply
AC380V 10% 50Hz
standard
GB/T2423.8
